SUN SURVEILLANCE SOLSTICE LIGHT
Modular Enclosure
The NEMA 3R enclosure is made of 5052 Aircraft Grade Aluminum, and is extremely corrosion resistant.
Pole
All of our poles are aluminum and corrosion resistant.
Lights
LED Light Mount
Solar Panels
Solar panel size can range depending on the need for smaller or larger panels.
Why Choose a Solstice Light?
MORE RELIABLE THAN GRID POWER
Guaranteed to operate 365 days a year as a trusted solution for critical applications
ROBUST
Made of non-corrosive aluminum that never rusts and will look new for years
.png)
SLEEK
The aluminum design is aesthtically pleasing and incorporates well with modern infrastructure and architecturee
Solstice Light

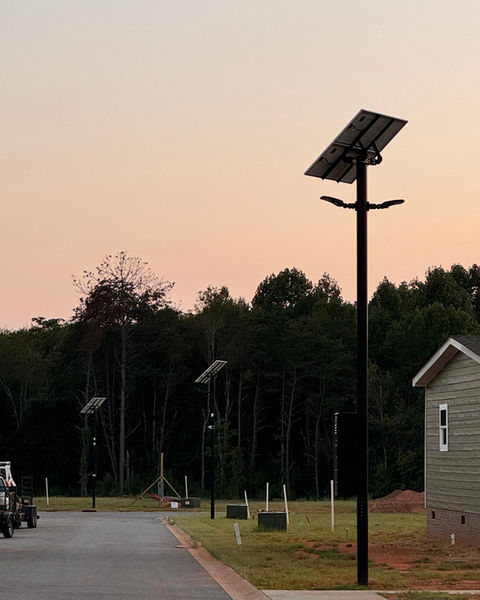

The Sun Surveillance Solstice Light™ solar-powered lighting system can be installed nearly anywhere as a turnkey solution. All SolsticeLight™ systems are backed by our performance warranty, giving you the confidence that your system will be available when you need it. This solar-powered lighting system offers an eco-friendly and reliable solution for various applications.
Options
-
Remote Health Monitoring
-
IR Illuminator: Various distances and angles
-
Strobe Light: White, Blue, Green, Red
-
Amplified Speaker: 10 watt amplifier and speaker
-
Powder Coating: Full selection of RAL colors
.png)
Specifications
Solar Panels
Multicrystalline silicon solar cell.
High transparency low-iron, tempered glass.
Heavy-duty anodized frames.
Rugged design to withstand high wind pressure, hail and snow load.
* Note solar panels vary in size and wattage based on geographical location and load.
Lights
LED Light Mount
Lumens: 9500
LLF : 1.000
Units: Fc Average: 0.46 Max: 4.3
Wireless Radio
Point to Point
900 MHz
2.4 GHz
5.8 GHz
Point to Multipoint
900 MHz
2.4 GHz
5.8 GHz
Mesh
900 MHz
2.4 GHz
5.8 GHz
Cellular*
GSM
3G, 4G, 5G†
LTE
Satellite
BGAN
*System is designed for your preferred wireless solution.
Popular Cameras
Our company provides a comprehensive camera power solution that is both reliable and versatile. We offer the flexibility to power any camera from any brand, including PTZ and thermal cameras. Our solutions are designed to meet your specific needs, ensuring that your chosen camera is powered with ease and efficiency.
Pole
Direct Burial, Sectional, Aluminum Pole:
20’ (6.096m) pole includes two sections: a 12’ (3.5m) main section and an 8’ (2.5m) base section. The base section is installed 4’ (1.2m) below ground, leaving 16’(5m) total above ground.
25’ (7.62m) pole includes two sections: a 15’ (4.572m) main section and an 10’ (3.048m) base section. The base section is installed 4’ (1.2m) below ground, leaving 21’ (6.4008m) total above ground.
30’ (9.144m) pole includes two sections: a 20’ (6.096m) main section and an 10’ (3.048m) base section. The base section is installed 4’ (1.2m) below ground, leaving 26’ (7.9248m) total above ground.
Sectional poles are available in either 6” diameter (7m x 152mm) or 20’ x 4.5” diameter (7m x 114mm)
Hinged Poles: The pole is hinged at the base for an extremely easy installation. The hinged pole comes in two standard sizes: 16’ x 6” diameter (5m x 152mm) and 20’ x 6” diameter (7m x 152mm.) Custom lengths below 20’ (7m) can be requested.
Mounting: All Sun Surveillance components are designed to mount to any flat surface or pole 4.5” (114mm) or greater.
Battery/Electronics
Enclosure: The enclosure is made of 5052 Aircraft Grade Aluminum, and is extremely corrosion resistant.
Electronics: All SolsticeCam™ systems are comprised of high quality, industrial grade components and can withstand the most extreme environments. Components include but are not limited to: charging circuit, overload protection, and power supplies.
Batteries: Absorbent glass mat, sealed lead acid. The battery bank and solar array are sized to provide continuous power 365 days a year.
