SUN SURVEILLANCE SOLSTICE POLE

Cameras, Horns, or Radar

We power your favorite combination of IP cameras and IP devices.

Solar Panels

Solar panel size can range depending on the need for smaller or larger panels.

Wireless

Choose your wireless radio from your favorite provider.

Pole

All of our poles are aluminum and corrosion resistant.

Modular Enclosure

The NEMA 3R enclosure is made of 5052 Aircraft Grade Aluminum, and is extremely corrosion resistant.

Why Choose a Solstice Pole?

MORE RELIABLE THAN
GRID POWER

Guaranteed to operate 365 days a year as a trusted solution for critical applications

ROBUST

Made of non-corrosive aluminum that never rusts and will look new for years

SLEEK

The aluminum design is aesthetically pleasing, and incorporates well with modern infrastructure and architecture

1/8

Solstice Pole

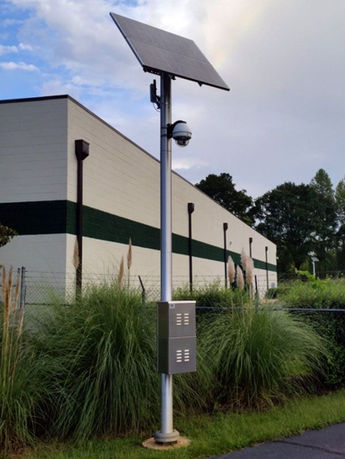

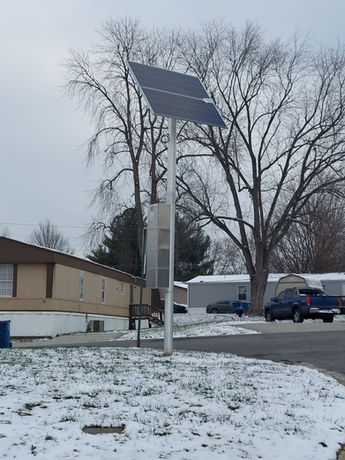

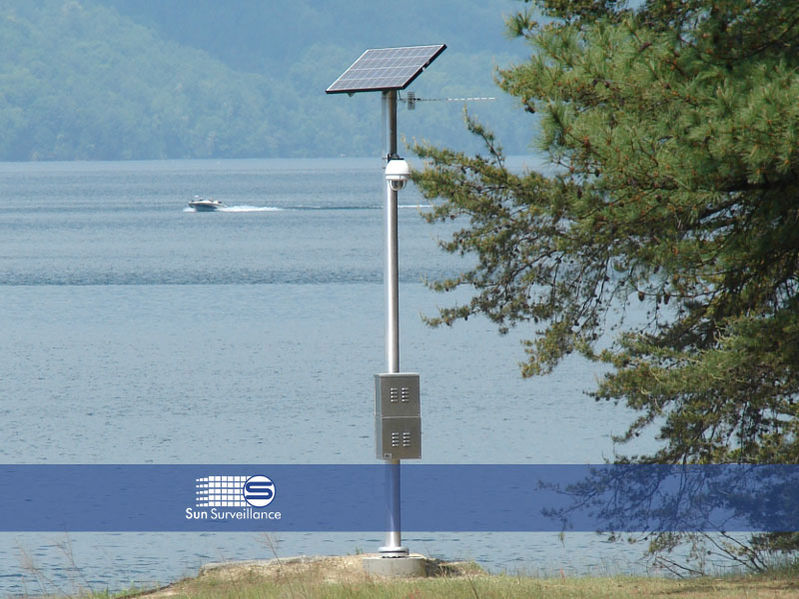

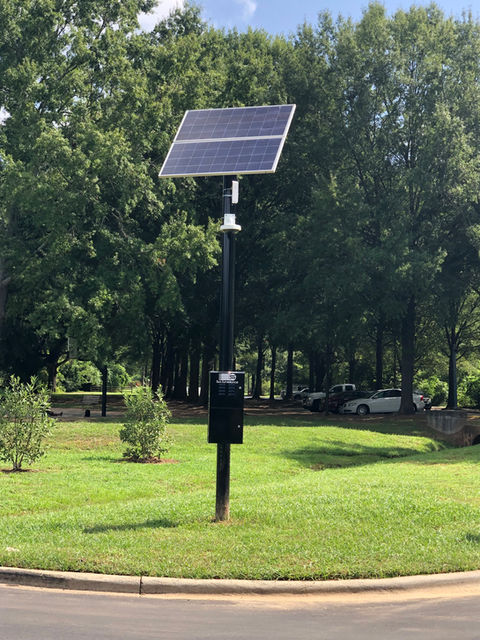

The Solstice Pole solar-powered wireless surveillance system can be installed nearly anywhere, and gives complete control of your cameras from anywhere in the world.

Compatible with virtually any IP camera, radar, or speaker/horn on the market. Ideal for remote video surveillance, including perimeter security for government and industrial facilities, railways, parks, construction yards, and parking lots.

All Solstice Pole systems are backed by our performance warranty, giving you the confidence that your system will be available when you need it. The Solstice Pole turns any cam into the SolsticeCam™.

Options

Remote Health Monitoring
IR Illuminator: Various distances and angles
Strobe Light: White, Blue, Green, Red
Amplified Speaker: 10 watt amplifier and speaker
Powder Coating: Full selection of RAL colors

Elevate Your Security with the Solstice Pole

Download the Sun Surveillance Solstice Pole spec sheet to learn more.

DOWNLOAD

Specifications

Solar Panels

Mono-crystalline silicon solar cell.

High transparency low-iron, tempered glass.

Heavy-duty anodized frames.

Rugged design to withstand high wind pressure, hail and snow load.

* Note solar panels vary in size and wattage based on geographical location and load.

Wireless Radio

Point to Point

2.4 GHz
5.8 GHz

Point to Multipoint

2.4 GHz
5.8 GHz

Mesh

2.4 GHz
5.8 GHz

Cellular*

5G
4G/LTE

Satellite

Starlink©

*System is designed for your preferred wireless solution.

Popular Cameras

Our company provides a comprehensive camera power solution that is both reliable and versatile. We offer the flexibility to power any camera from any brand, including PTZ and thermal cameras. Our solutions are designed to meet your specific needs, ensuring that your chosen camera is powered with ease and efficiency.

Poles

All of our poles are aluminum and corrosion resistant.

Direct Burial, Sectional, Aluminum Pole: The 20’ x 6.625” diameter (7m x 168mm) or 20’ x 4.5” diameter (7m x 114mm) pole includes two sections: a 12’ (3.5m) main section and an 8’ (2.5m) base section. The base section is installed 4’ (1.2m) below ground, leaving 16’ (5m) total above ground.

Hinged Aluminum Pole: The pole hinges at the base for an extremely easy installation. The hinged pole comes in two standard sizes: 16 ft. x 6 in. (pictured at left) and 20 ft. x 6 in.. Custom lengths below 20 ft. can be requested.

Battery/Electronics

Enclosure: The enclosure is made of 5052 aircraft grade aluminum and is extremely corrosion resistant.

Electronics: All SolsticeCam systems are comprised of high quality industrial grade components and can withstand the most extreme environments. Components include but are not limited to: charging circuit, overload protection, and power supplies.

Batteries: Absorbent Glass Mat, Sealed Lead Acid. The battery bank and solar array are sized to provide continuous power 365 days a year.

Options

Remote Health Monitoring

IR Illuminator: Various distances and angles

Strobe Light: White, Blue, Green, Red

Amplified Speaker: 10 watt amplifier and speaker

Powder Coating: Full selection of RAL colors
